Video
Parking Space Guidance
&
Reverse
Car-Finding System Solution
V3.8
Chapter
1 Company Introduction
Since
its establishment, our company has been dedicated to the R&D,
production, wholesale, and customization of parking space guidance
systems. Currently, we have professional and comprehensive induction
solutions for various types of parking lots. Our main products
include integrated ultrasonic parking space guidance systems,
split-type ultrasonic parking space guidance systems, video parking
space guidance systems, wireless ultrasonic guidance systems for
stereoscopic garages, parking lot zone induction systems, and outdoor
geomagnetic parking space guidance systems. Over the past few years,
we have achieved excellent sales performance in parking space
guidance and gradually established a complete marketing network,
after-sales service system. Customers can obtain pre-sales technical
support, reasonable in-sales solutions, and standardized after-sales
services to maximize their needs.
Our
goal is to become the most professional parking space guidance
enterprise nationwide, committed to providing more OEM customization
services and suitable space remaining statistics and parking guidance
solutions for various parking lots. The company has currently
provided product support and OEM customization for over 1,000
enterprises, receiving unanimous praise from many parking lot
practitioners. We are also dedicated to improving our services.
In
software and hardware development and design, the company focuses on
meeting customers' project functional requirements. We have
professional software developers to handle standard or non-standard
customized software and hardware docking and customized programs,
satisfying customers' functional needs for parking space guidance
systems.
We
adhere to the service concept of 'serving customers' to
provide you with the most professional pre-sales technical
consulting, solution development, and construction budgeting,
comprehensive technical guidance throughout the process, debugging
guidance, and worry-free after-sales services. We look forward to
developing together with friends from all walks of life.
Chapter
2 System Requirement Overview
The
intelligent reverse car-finding system is generally based on the
guidance system and serves as its complement. When customers return
to the parking lot, especially in large ones, they often struggle to
locate their vehicles. The system helps customers quickly find their
parking areas, improving satisfaction while accelerating vehicle
turnover and enhancing parking lot utilization and revenue.
Current
Urgent Issues in Parking Lots:
-
Drivers
enter the parking lot without knowing where empty spaces are,
wasting time searching at low speeds, causing congestion, increasing
fuel consumption, and polluting the air.
-
When
retrieving vehicles, complex layouts and similar structures hinder
visibility, leading to drivers entering dead ends or circling
repeatedly.
-
In
case of common incidents like parking scratches or smashed windows,
it is difficult to trace the responsible party, resulting in
financial and reputational losses for managers.
-
Managers
cannot obtain real-time parking space occupancy data, relying on
manual inspections that waste resources and lack
accuracy/timeliness, reducing parking lot efficiency.
-
During
peak hours, a large number of staff are required for manual
guidance, leading to low efficiency and high costs.
-
Managers
cannot statistically analyze parking space usage data in real time,
making it difficult to adjust operations and optimize space
allocation.
Based
on these challenges, our company has developed this parking guidance
and reverse car-finding system. By using this system, the
intelligence and informatization level of the parking lot can be
improved, replacing manual tasks with intelligent devices, saving
labor costs, and ensuring timely, accurate, and effective data.
Drivers can quickly find parking spaces and retrieve vehicles through
various guidance devices, saving time and forming a positive
impression of the parking lot.
Chapter
3 System Introduction
3.1
System Overview
In
short, 'guidance' helps drivers find empty parking spaces
quickly, while 'car-finding' locates parked vehicles
efficiently.
-
Guidance:
Data collection modules in the parking lot gather information on
parking spaces and license plates, transmit data to the central
control module via a data transmission network, which processes and
stores the information in a database server, and distributes it to
information release modules for guidance and reverse car-finding
services.
-
Car-Finding:
Data collection modules collect and bind parking space and license
plate information, transmit it to the central control module via a
data transmission network, which processes and stores the
information in a database server, and distributes it to information
release modules for car-finding services. Drivers can query vehicle
information through integrated touch query machines, and the system
plans the optimal route for car retrieval.
3.2
System Functional Design
The
system uses license plate recognition cameras installed above parking
spaces to process real-time video information, detect space status
and license plates, transmit occupancy status to guidance screens for
driver navigation, and store license plates and images in a data
server for reverse car-finding. Main functional designs include:
3.2.1
Parking Guidance (No Card Swiping Required)
Compared
with traditional card-swiping car-finding systems, this system
eliminates the need for manual card swiping, avoiding failures caused
by users forgetting to swipe cards. It provides parking guidance
through entrance information screens, indoor LED guidance screens,
and indicator lights on video parking space detectors to direct
vehicles to empty spaces.
3.2.2
Integrated Detection and Monitoring
The
system not only detects parking space occupancy in real time using
video technology but also provides high-definition recordings of all
spaces, effectively preventing disputes caused by scratches, window
damage, or theft, and enhancing parking safety.
3.2.3
Intelligent Algorithms and Fuzzy Query
Using
low-light CMOS video detectors with intelligent recognition
algorithms for vehicle contours and license plates, the system
achieves over 99% space status detection accuracy and over 95%
license plate recognition accuracy. It supports fuzzy queries,
allowing users to input partial license plate characters to retrieve
similar vehicle images and videos for confirmation, improving query
efficiency.
3.2.4
Reverse Car-Finding with Optimal Route Planning
The
system enables reverse car-finding via license plates, vehicle
contours, and feature recognition. Front-end detectors capture
license plate information, and users can query vehicle locations by
inputting license plates, parking time, space numbers, or searching
for unlicensed vehicles on query machines or by scanning QR codes.
The system then plans the optimal route for guidance.
3.2.5
Parking Line Violation Alarm
The
system detects vehicles parked across lines and triggers alarms via
yellow flashing lights or voice prompts to remind drivers to re-park,
maximizing space utilization and facilitating management.
3.2.6
Reserved Space Occupancy Warning
Designated
license plates can be set for reserved spaces. If an unauthorized
vehicle parks in such a space, the system triggers front-end
indicator alarms and notifies the management backend for
intervention.
3.2.7
Mobile Car-Finding with Static Route (Optional)
The
system supports uploading parking routes to a platform, allowing
users to scan QR codes and input license plates for optimal route
guidance without Bluetooth locators, offering cost-effective and
advanced functionality.
3.2.8
Bluetooth Positioning and Real-Time Navigation (Optional)
With
external Bluetooth modules, the system enables indoor positioning and
real-time navigation on mobile devices (with Bluetooth enabled),
helping users avoid getting lost in complex underground parking lots.
3.2.9
Compatibility with Mechanical Garages
Applicable
to both flat and mechanical garages, the system uses wireless
ultrasonic detectors and video detectors to monitor space status and
vehicle information in mechanical garages, enabling guidance and
reverse car-finding.
3.2.10
Seven-Color Indicator Lights for Multiple Applications
Integrated
video detectors feature seven-color indicators (red, green, yellow,
blue, magenta, cyan, white), with red indicating occupied, green
indicating vacant, and blue designating reserved spaces.
3.2.11
Fault Isolation and Self-Testing
The
system architecture includes a fault isolation mechanism: a single
device failure only affects itself, while the management center
periodically monitors device status and provides alarms for quick
troubleshooting, enhancing reliability and stability.
3.2.12
Touchscreen Experience with Modern Design
Query
terminals use capacitive touchscreens for a keyless operation
experience, offering a tech-savvy interface.
3.2.13
Clear Imaging and Accurate Recognition
Video
detectors adopt advanced video technology for high-resolution imaging
and fast, accurate license plate recognition using intelligent
algorithms for license plates and vehicle contours.
3.3
System Advantages
-
Simple
Architecture:
Reduces construction difficulty and costs, with long transmission
range and high stability ensuring reliability and wide coverage.
Standard network switches replace traditional controllers, improving
stability, reducing failure points, and lowering hardware costs.
-
Dual
Ethernet Port Cameras:
Each license plate recognition camera with dual ports can connect 7
cameras via a single network cable, saving wiring costs, improving
aesthetics, and simplifying fault detection compared to traditional
single-cable setups.
-
Advanced
Front-End Algorithms:
Built-in video detection algorithms ensure high license plate
recognition reliability and industry-leading vehicle detection
rates, supporting multi-space recognition and unlicensed vehicle
detection.
-
Integrated
RS485 Function:
Allows LED displays to connect to nearby cameras, saving wiring and
costs.
-
TCP/IP
Networking:
Ensures fast and secure data transmission, facilitating modular
device installation. Equipment relocation is simplified by
connecting to the existing LAN, minimizing impact on other devices.
Chapter
4 System Composition
Video
parking guidance is used for detecting and indicating underground
flat parking spaces. Video cameras monitor space information in real
time, judging occupancy by license plates and vehicle contours, and
transmitting data to the induction manager and management platform.

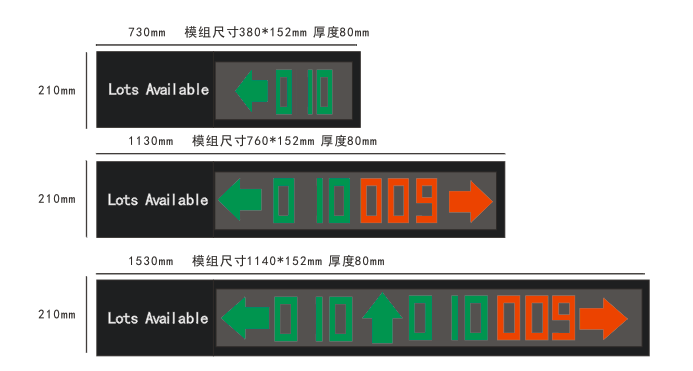

The manager updates empty space counts on intersection guidance
screens to direct drivers. Space statuses are indicated by
seven-color lights (red=occupied, green=vacant, blue=reserved).
Reserved spaces (e.g., sold, long-term rental, VIP) are marked with
blue lights and license plate displays (e.g., 'VIP Space')
to prohibit unauthorized parking, with system alarms notifying
managers of violations.
Workflow:
-
Drivers
check empty space counts on the 'Entrance Information Guidance
Screen' before entering.
-
Inside
the parking lot, 'Direction Screens' at intersections
display empty space counts for each direction.
-
Each
space has a 'Parking Monitor Camera' with a green light
indicating vacancy, turning red when occupied.
-
For
car retrieval, users can search via query machines or QR codes, with
the system displaying parking locations and optimal routes; mobile
real-time navigation is also supported.
System
Components:
4.1
Video Parking Cameras
The
video parking space camera is an intelligent device used in parking
guidance and reverse vehicle locating systems to detect the presence
or absence of vehicles in parking spaces. Equipped with an integrated
vehicle status indicator, the camera can display six colors in real
time—red, green, yellow, blue, cyan, and purple. A red light
indicates an occupied space, green signifies an available space, and
yellow denotes an abnormal occupancy. This device is widely suitable
for environments with complex lighting conditions, such as
underground parking garages and above-ground parking structures,
effectively addressing challenges related to parking availability and
vehicle retrieval for drivers.
The
video parking space camera is available in two series: the 400
series,
which supports either three or six parking spaces. Leveraging
advanced video image processing technology, it analyzes captured
parking space images to determine occupancy status and perform
license plate recognition. This enables comprehensive
functionalities, including vehicle image capture, license plate
number recognition, and parking space occupancy detection.
4.1.2400
Series POE Parking Camera
-
4MP high-definition resolution, equipped with high-precision parking
space detection and license plate recognition algorithms, delivering
industry-leading accuracy and speed with a comprehensive recognition
rate of over 99.8%.
-
Utilizes deep learning CNN algorithms to significantly improve the
recognition accuracy of unlicensed vehicles (supports both front and
rear detection).
-
Supports customizable voice announcements and automatic expulsion,
effectively addressing parking management challenges. Enables
bluetooth-controlled locks, allowing direct control of ground locks
by the camera, eliminating wiring needs.
-
Features foreign object occupancy detection, providing alarm and
inspection functions for obstructions such as traffic cones.
-
Equipped with anti-occlusion functionality for parked vehicles,
preventing frequent state changes caused by obstructions.
-
Wide voltage input (DC 8-48V), supports PoE power supply, ensuring
strong power adaptability.
-
Optional iBeacon module for Bluetooth indoor navigation.
-
Supports 3 external I/O indicator lights, enabling
one-light-per-spaceconfiguration.
High-brightness, energy-efficient LED tubes with 7-color indication.
-
Daisy-chain network design, allowing multiple cameras to be connected
in series.
-
Built with top-tier components, mature and stable hardware solutions,
ensuring high reliability and protection rating.
-
Integrates a low-light sensor, suitable for various low-light and
backlight conditions while maintaining optimal performance.
Hardware
Specifications
Name:
4MP Video Parking Space Detection Camera
Model:
CW400-V3/V6
Processor:
ARM-based dedicated license plate recognition chip
Computing
Power:
1 TOPS
Sensor
Type:
1/2.7' CMOS Image Sensor
Minimum
Illumination:
0.1 Lux
Supported
Parking Spaces:
3 spaces (monocular), 6 spaces (binocular)
Lens:
2.8mm (standard) / 3.6mm / 6.0mm
Parking
Space Indicator Lights:
7 colors (red, yellow, blue, green, cyan, purple, white)
Performance
Metrics
License
Plate Recognition Rate:
≥99.8%
Light
Switching Accuracy:
≥99.8%
Recognized
License Plate Types:
Blue, yellow, new military/police, Guangdong-Hong Kong/Macao,
embassy/consulate (old/new), old non-reflective plates, coach
vehicles, civil aviation, new energy vehicles (large/small),
emergency vehicle plates
Unlicensed
Vehicle Recognition:
Supports front/rear vehicle detection
Vehicle
Occlusion Prevention:
Supported
Foreign
Object Occupancy Alert:
Supported
Person
Loitering Alert:
Supported
One
Vehicle Occupying Multiple Spaces:
Supported
Video
Resolution:
Max 2560×1440
Resolution:
Max 1440P
Video
Compression Formats:
H.264, H.265
Electrical
& Interface Parameters
Network
Interface:
10/100M auto-adaptive, dual RJ45 ports (daisy-chain supported)
External
Light Control Interface:
3.81mm terminal ×3 channels
iBeacon/Lock
Control:
Supported (optional)
Voice
Broadcast:
Supported (optional)
RS485
Interface:
3.81mm terminal ×1 channel
PoE
Power Supply:
Supports PoE+ (optional, pins 45+/78-)
Bypass:
Supported
Power
Input:
5.08mm terminal ×1, standard DC12V (supports wide voltage range
DC8-48V)
Power
Consumption:
≤4W (without I/O external lights), ≤8W (with I/O external
lights)
Operating
Temperature:
-20°C to 60°C
Dimensions:
φ118×124mm
Weight:
450g
Installation:
Ceiling-mounted bridge bracket
4.2
Video Processors
Video
processors form a LAN with parking cameras (recommended 20 cameras
per processor), transmitting real-time space status and license plate
data to the guidance server via Ethernet.
4.3
Reverse Query Machines
Located
at elevator entrances and exits, query machines use touchscreen
interfaces for vehicle location searches. Users can input license
plates, space numbers, or parking time ranges. Features include:
-
LCD
display and capacitive touchscreen
-
Map-based
route planning with zoom function
-
Advertising
playback in idle mode
-
QR
code payment support (Alipay/WeChat Pay)
-
High-end
metallic finish
Specifications:
|
Parameter
|
21.5-inch
Model
|
32-inch
Model
|
|
Display
Area
|
477×368mm
|
699×393mm
|
|
Resolution
|
1920×1080
(16:9)
|
1920×1080
(16:9)
|
|
Touch
Type
|
10-point
capacitive
|
10-point
capacitive
|
|
Response
Time
|
<5ms
|
<5ms
|
|
Power
Supply
|
AC100-240V,
50/60Hz
|
AC100-240V,
50/60Hz
|
4.4
Parking Guidance Screens4.4.1
Intersection Direction Screens
Installed
at key intersections, these LED screens display empty space counts
and directions (customizable content). Features:
-
RS485
communication
-
High-brightness
LED modules
-
Aluminum
alloy casing
-
Dimensions:
Single-direction 730×214×80mm, dual-direction
1130×214×80mm
4.4.2
Entrance Space Remaining Displays
Located
at parking lot entrances or intersections, these screens show
real-time space availability and welcome messages. Features:
-
RS485
communication
-
Customizable
LED display
-
Weather-resistant
steel casing
-
Dimensions:
2000×750×200mm
Chapter
5 Video Guidance for Indoor Mechanical Garages
For
vertical parking systems (e.g., double-layer 5-space garages),
traditional video detectors cannot monitor dynamic spaces. The system
uses video detectors and inductive devices on garage pallets to
associate vehicle information with space numbers, enabling guidance
and car-finding.
-
Space
Status Indication:
Red light = full, green light = vacant (at least one space
available).
-
Reverse
Car-Finding:
Search by license plate, parking time, or garage number to locate
the garage area.
-
System
Structure:
Combines wireless ultrasonic detectors and video cameras, with data
transmitted via RS485/TCP to servers and guidance screens.
Key
Components:
-
Underground
Ultrasonic Detectors:
-
-
Installed
on pallet centers, using ultrasonic ranging and wireless
communication (LoRa) to transmit space status, with IP66 protection
and 5+ years battery life.
-
Wireless
Gateways:
Manage wireless devices (detectors, indicators), transmit data via
TCP, and support hybrid wired/wireless networking for mixed parking
lots.
Chapter6Software
Introduction
6.1
Server-Side Software
-
Dashboard:
Real-time statistics on total spaces, occupied/vacant counts, and
floor-wise status.
-

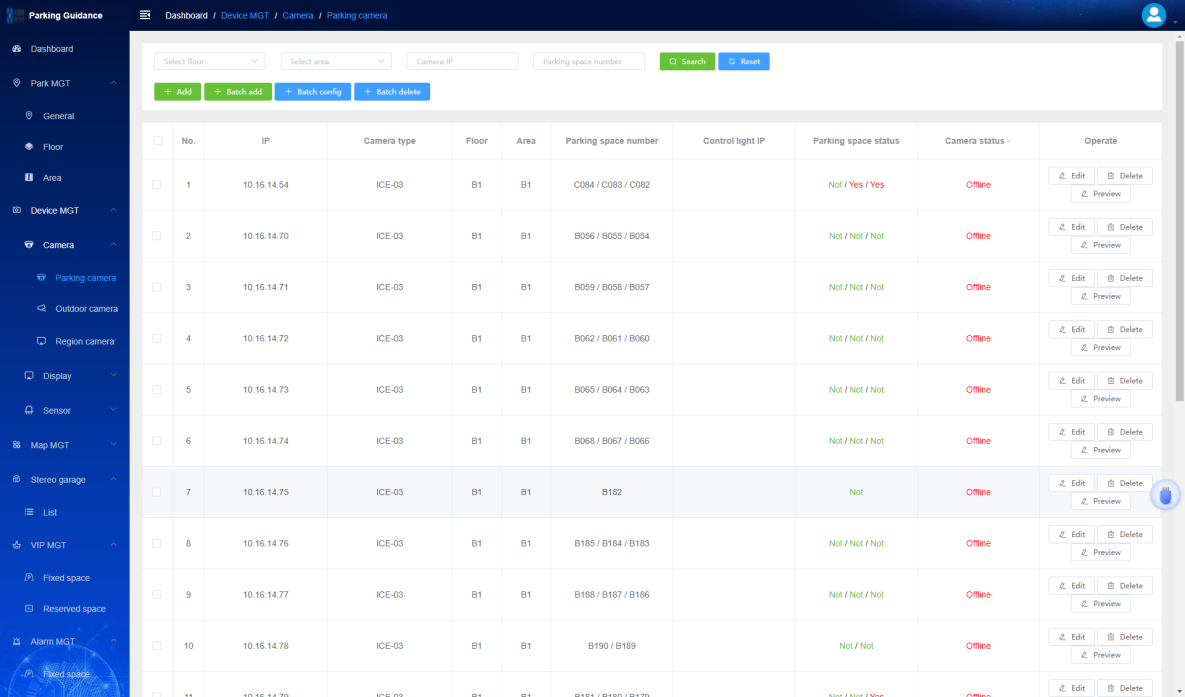

Device
Management:
Configure cameras, screens, and zones; monitor device status and
alarms.
-
Reporting:
Generate traffic flow and space utilization reports
(daily/weekly/monthly).
-
Map
Management:
Integrate electronic maps for route planning and visualization.
6.2
Query Machine Software
-
License
Plate Search:
Input partial/full license plates to retrieve vehicle locations and
routes.
-
-
Time/Space
Number Search:
Filter vehicles by parking time or space number.
-
Unlicensed
Vehicle Search:
Identify vehicles via images and detailed information.
-
-
Cross-Floor
Navigation:
Guide users to elevators for inter-floor travel, then to parking
spaces.
-
Chapter7Quality Assurance and After-Sales Service
7.1
Product Quality Commitment
All
products are complete with certificates and warranty cards. Customers
may reject incomplete deliveries and request replacements within
contractual deadlines.
7.2
Warranty Terms
-
Coverage:
1-year free hardware warranty and same-level software upgrades under
normal use.
-
Exclusions:
Damage from accidents, natural disasters, improper operation,
unauthorized modifications, or incompatible accessories will incur
repair costs.
-
Validity:
Warranty applies to officially sold products in China, requiring
proof of purchase (warranty card/invoice).
7.3
After-Sales Service
Multiple
service channels are available to address customer needs promptly,
ensuring worry-free use nationwide.
