I. Main Technical Parameters
1. Overall Dimensions: 1400mm (L) × 200(280)mm (W) × 980mm (H)
2. Material & Structure: 304 stainless steel; Top cover nominal thickness 1.5mm (actual thickness 1.15mm), Body nominal thickness 1.2mm (actual thickness 0.95mm)
3. Passage Width: 550mm
4. Drive Motor: Brushless motor
5. Service Life: 10 million stable and trouble-free operations
6. Control Direction: Bidirectional, Unidirectional, Unidirectional + Infrared Sensor Exit (optional)
7. Number of Infrared Sensors: 6 pairs as standard
8. Alarm & Anti-pinch Function: Illegal intrusion alarm, Tailgating alarm; Triple anti-pinch and anti-collision protection (mechanical + infrared sensing + circuit control)
9. Passing Speed: 40 persons per minute
10. Working Power Supply: AC110V ～ AC220V
11. Operating Environment: Indoor use; Temperature: -30℃ to 60℃; Humidity: ≤95% RH, non-condensing
12. Communication Interface: Customizable (RS232, RS485, TCP/IP)
II. Functional Features
Multiple operating modes available: Bidirectional access via card swiping/facial recognition/QR code scanning; or one-way access via card swiping/facial recognition/QR code scanning with the other direction set to locked, button-controlled, or infrared sensor-activated.
Equipped with 'Worry-Free Turnstile' function: Once connected to the network, the turnstile can be managed via computer or WeChat Mini Program to:
a) Control gate opening and closing
b) Monitor operating status and fault causes
c) Debug parameters
d) Integrate with facial recognition devices/card access control systems and accurately count pedestrian flow
The mainboard features multiple overcurrent, overvoltage, and lightning protection mechanisms for stable operation and extended service life. Key-based parameter setting allows free configuration without connecting to a computer.
Adopts full-automatic wing gate movement with smooth operation, gentle buffering, and low noise. Combined with the new-generation brushless motor solution, it effectively controls orderly pedestrian access.
Triple anti-pinch and anti-collision protection (mechanical + infrared sensing + circuit control) eliminates pinching and collision risks.
Automatic gate opening upon power failure and automatic reset after power restoration, meeting fire safety and other special requirements with high security.
Integrates unique mechanical transmission and microprocessor control: Upon receiving a valid opening signal, the wing gate opens under motor drive and automatically resets via infrared sensing after pedestrian passage. If no passage occurs within the specified time after opening, the gate resets automatically to ensure passage security.
Fault self-diagnosis, illegal intrusion alarm, and tailgating alarm functions facilitate maintenance and usage.
Clear direction indication with high-brightness LED lights to intuitively show allowable or prohibited passage.
Unified and standard external electrical interfaces enable seamless integration with various intelligent devices and remote control/management via a host computer.
Note: To implement intelligent access control, attendance management, visitor management, real-name authentication, temperature measurement, elevator control, or consumption management functions, please install our corresponding accessories: access controllers, card readers, facial recognition devices, fingerprint scanners, barcode scanners, ID card readers, and temperature measurement equipment.
III. Application Scope
Suitable for one-way or bidirectional pedestrian flow control at entrances and exits, such as: Intelligent office buildings, government institutions, schools, banks, clubs, and other venues.

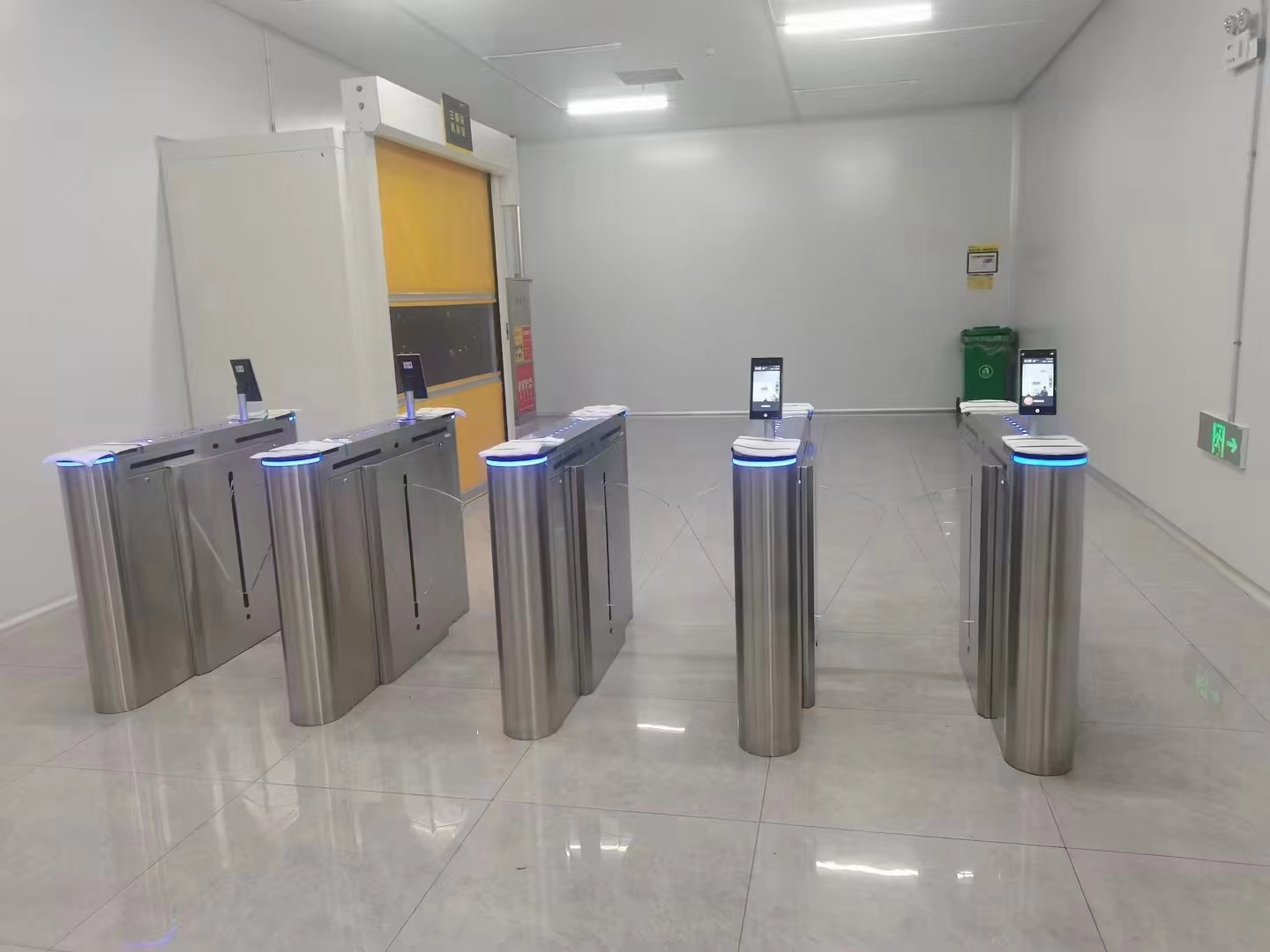

Ⅳ Case
