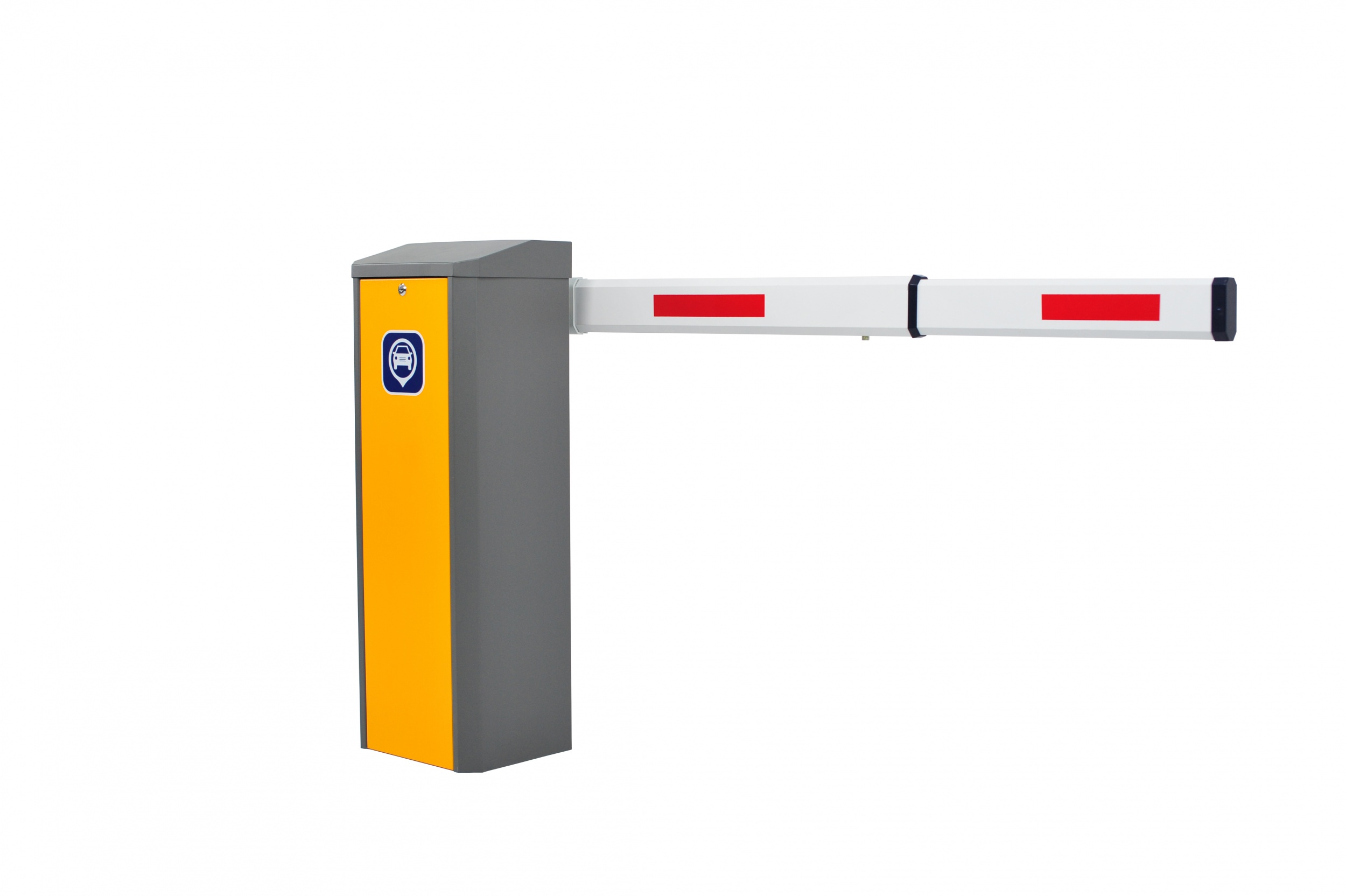

DC Brushless Motor 24V Boom Barrier Gate
| Weight | 80 kg |
|---|
| Dimensions | 150 × 50 × 50 cm |
|---|
| Working Temperature | -35°C~+65°C |
|---|
| Power Supply | DC24V |
|---|
| Open/close Speed | 1.5Sec-6Ｓec |
|---|
| Rated Power | 150W |
|---|
| Driving Method | DC Brushless Motor |
|---|
| Output Power | 56.8N.m |
|---|
| Remote Control Distance | ≤100m(open, sunny weather) |
|---|
| Protection Grade | IP54 |
|---|
| Motor No - load Speed | 1850r/min |
|---|
| Max Boom Length | 6m |
|---|
1. Advanced mechatronics Side-mounted design concept: structure compact, quick assembly, easy maintenance.
2. Molding production: high precision, fast efficiency, and guaranteed quality.
3. Advanced worm-gear three-stage transmission: high precision, long lifetime, no blocking, no oil leakage, large torque, low noise, can normally operate at the temperature of minus 35 degrees, etc.
4. DC brushless motor design: low consumption, high efficiency, no overheat, wide speed adjustment, make arm open and close fast and stable.
5. Hall limit: automatically detects the limit when power on without debugging, high precision, detecting the motor speed at all times and running at a constant speed and stable.
6. Curved triple connecting rod structure design concept, makes arm in the vertical and horizontal position, easy to adjust the arm balance, avoid to lift arm violently.
7. Arm direction quickly interchanged: interchanged according to different directions on construction site, reduce inventory and capital pressure.
8. Advanced DC brushless controller: use integrated chip drive, fast processing speed, large memory, good control effect, powerful function, high degree of automation; 24V low voltage power supply adapts to global voltage, safe and reliable.
